Products > High Frequency X-ray > MD-8500C 202 HIGH FREQUENCY DIGITAL RADIOGRAPHY SYSTEM


Three phase 380v 50Hz
Output power: 25 kW
Inverter Frequency: 40kHz
Tube current:50- 200mA
Tube voltage: 40~125kV Grey scale:16bit
Imaging system: 17''x17'' Flat Panel Detector Work station:1*19''LCD display

Product Usage

MD-8500C 202 is a high frequency flat-panel digital X-ray radiography system, suitable for radiology department, orthopedics, ward, emergency room, operating room, ICU and other departments. With flexible movement, easy operation, high efficiency, to meet the radiography for all of human body's parts, such as head, limbs, chest, spine, lumbar vertebrae, abdomen, etc.

Optitionnal:diagnostic bed:F153

Product Specification


frequency   X-ray machine

Output   power


Main   inverter frequency


X-ray   tube

Dual-focus   X-ray tube

Small   focus:0.6  Large focus:1.3

Output   power


Anode   Capacity


Anode   Angle


Speed   of rotating anode


Tube   Current


Tube   voltage







Digital   Image System



Digital   Detector

Field   of view




Ultimate   spatial resolution


Pixel   size


Output   grayscale


Imaging   time


Image   Workstation

Acquisition   module

Inside   enhancement module

Image   information management

Dicomimage   transmission

Dicomfilm   printing

Dicomimage   storage(hard disk, compact disk)

Mechanical   structure  and performance


Vertical   movement range

≥1250   mm(motorized control)

Focus-screen   movement range

≥800mm(motorized   control)

Rotation   range

-40°-+130°(motorized   control)

Detector   rotation


Photography   table


Table   size


Table   height


Transverse   movement

200mm(electromagnetic   lock)

Longitudinal   movement

100mm(electromagnetic   lock)

Power   supply

Three   380V 50/60Hz

1.    Type of generator and X-ray tube:


Advanced 40kHz high frequency high voltage type generator, realize 1ms instant exposure, high performance.

Three exposure method free change: KV, m As two adjustment, KV, mAs three adjustment, to satisfy different habit of different doctors.

Rotate double anode 0.6/1.3, with high heat capacity of 107KHU

Digital micro-processed closed loop control and malfunction alarming system to reduce the dose of X-ray, protect the patients and doctors very well.

LCD touch screen, beautiful appearance and convenience to operate.、

. Flat Panel Detector


Apply with domestic brand Flat panel detector, which could give perfect digital images directly.

3K×3K Acquisition matrix, 143um pixels size, and 3.7Lp/mm ultimate spatial resolution, with DQE values ≥70%

17×17Large acquisition area and with the non-center processing technology, no matter the center and border, the quality of the image is the same.

The detector could be rotated ±45 degree along the axis direction, to satisfy the different photograph requirement of every body parts, such as Ankle joint, lateral spine

The detector has the self-protection function. It can stop to move when it detect the distance in front of the barrier.


3. Digital Working Station:

Case registration: Auto registration, equipped with Dicom Worklist SCU. To simplify the input process for doctors, greatly reduce work and greatly improve the working efficiency

Image Acquisition: Automatic window adjustment, Automatic cropping, Automatic transmit.

Image Processing: Tissue equilibrium, W/L adjustment, Gamma correction, interest district, reversed phase, noise reduction, smooth, sharpen, pseudo color, edge extraction, shadow compensation, filter nuclear, single window, dual-window, four windows, movement, right rotated 90°,left rotated 90°,level mirror image, vertical mirror image, magnifying glass, image zooming, reset, layer information, label character, drawing label, length measurement, angle measurement, rectangular length, rectangular area, elliptic length, elliptic area.

Dicom Image Transmit, Dicom Image Storage, Dicom Image viewing, Dicom Image printing.

Convenient to connected to the PACS system


4. Operation System:

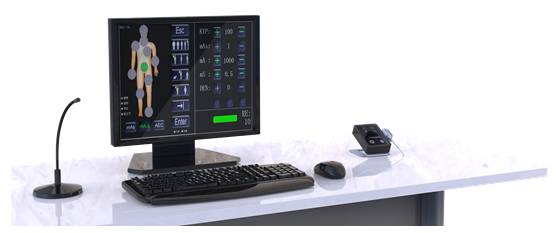

Be equipped with19LCD high resolution monitor screenthe delicate and richness degree of image is far higher than the normal medical monitor. International advanced level.

These features can make the doctor diagnose more accurate and smooth.

Human graphical touchable screen. Just need a slight click on the human body position and shape, the parameters can be set easily.

Be equipped with the microphone and remote exposure control. The doctor can control outside the operating room.

Be equipped with various set of infrared facilities to protect the machine from the mis-operation of the doctors.


5. Mechanical Movement:

The self-designed and manufactured electric U-arm mainframe can move up and down, and rotate in a wide range, which can satisfy the requirements of multi-site photography.

Adopting original Italian geared motor, the features are reliable performance, lower noise, longer service life.

The unique three-dimension and three independent control system, can achieve one-key reposition.

For Close-distance Range, the operator can operate the machine by the film key on the combined generators and X-ray tube; For Middle distance Range, can operate by the hand controller; For Long-distance Range can operate by the touchable LCD screen outside the operating room.
