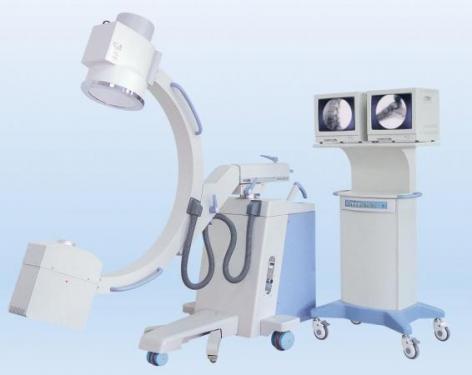

MD-112B HF Mobile X-ray C-arm System
MD-112B HF Mobile X-ray C-arm System
MD-112B HF Mobile X-ray C-arm System
Specifications |
Fluoroscopic Capacity Max rated capacity : Tube Current 4mA, Tube Voltage 120kV Automatic Fluoroscopy : Tube Voltage:40kV～120kV adjust automatically Tube Current : 0.3mA～4mA set manually Manual Fluoroscopy : Continuous Tube Voltage:40kV～120kV Continuous Tube Current : 0.3mA～4mA Pulse Fluoroscopy : Continuous Tube Voltage 40kV～120kV Continuous Tube Current 4.1mA～8mA Photography Capacity Max rated capacity : 5 KW Tube Voltage and Cur- rent Combination : 40kV～49kV 1 ～180 mAs 50kV～59kV 1 ～140 mAs 60kV～69kV 1 ～125 mAs 70kV～79kV 1 ～110 mAs 80kV～89kV 1 ～100 mAs 90kV～99kV 1 ～80 mAs 100kV～109kV 1 ～63 mAs 110kV～120kV 1 ～50 mAs Plate holder Size : 200mm×250mm(8″×10″)or 250mm×300mm（10″×12″） X-ray Tube X-ray Tube Special for High Frequency Fixed anode X-ray tube Dual-focus: large focus: 1.5, small focus: 0.3 Main Inverter Frequency: 40KHz Thermal capacity: 30KJ (40KHU) Video System Image Intensifier : Image Intensifier made by TOSHIBA (9″、 6″、4.5″) CCD Vidicon : Ultra low-light CCD camera imported from Japan Monitor : Horizontal 1000 lines and vertical /margin/edge 800 lines, Bandwidth : 12.5MHz, Image/sec : 75 CCU(central control) : Recursive Filter: K=8,8 images storage, image upright, image overturn，positive & negative image；LIH(last image freeze, and OSD（monitor display） Structure Directive wheel : ±90°revolution，can change the moving direction of the unit at will. Ascending & Descending Range of Pillar : ≥400mm C-arm : Forward and Backward Movement: 200mm Revolution around Horizontal Axis: ±180° Revolution around Vertical Axis : ±15° Slip on orbit: 120°(+90°～ -30°) Packing Details : 2440mm×1100mm×1420mm N.W. 300kgs G.W.400kgs |
Features |
1、With a small and beautiful appearance, and easy to operate; 2、Clinical Video system with high performance，8 images storage volume, and two 14〞high-resolution monitors; 3、Automatically track fluoroscopy to make the image brightness and clearness optimum; 4、Automatically store the last image of fluoroscopy to advantage diagnosis; 5、With a high-quality knockdown X-ray generator to reduce radiation |
