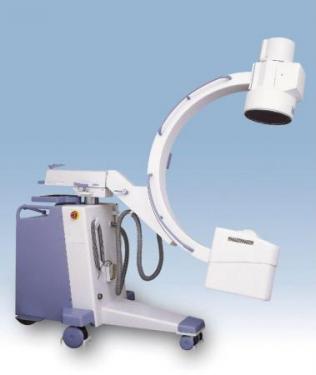

MD-3310C HF Mobile C-arm X-ray Imaging System
MD-3310C HF Mobile C-arm X-ray Imaging System
MD-3310C HF Mobile C-arm X-ray Imaging System
French Thales Brand Image intensifier(three visual field):9'/6'/4.5'Japanese CCD camera rotation:360°
French Thales Brand Image intensifier(three visual field):9'/6'/4.5'Japanese CCD camera rotation:360°
Italian IMD brand high frequence X-ray generator.
manual operation
OPERATIONS:
Inverter:120KV,5KW,40Khz.
Operation mode:Fluoroscopymode (KV Manual&Auto)
Radio Graph Imaging system: Recursive noise reduction,images storage ,
Range of rotation: 360°
Vertical travel:400mm ,
Horizontal travel:200mm
wag: ≥±12.5°
range of C-arm Rotation Angle≥115°
C-arm Dimension:Distance of focal spot to image generator 1000mm.
Depth in Are≥630mm
Mobile stand:1800mm*800mm*1850mm
Imaging system:750mm*530mm*1680mm
